Feature:
1.Material: Shell:PA66/PE/PP (option), Conductor: Brass | 2.Type: H,U(W),V(F) |
3.Authentication: CE, RoHS ,VDE | 4.Color: Natural orCustomize |
5.Working temperature: Static state from -35°C to 120°C, short- time to 140°C | |
6.Characteristics: 1.Plastic shell good bounce impact force, good resist dissolve; Polyamide PA66, 94V-2 grade, Inflaming retarding; 2.Brass insert glossy and clean; 3.Tolerance very smaller; 4.Screw high quality | |
Specification

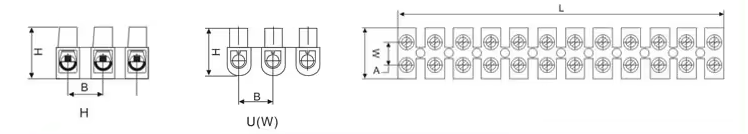

| Model | Long | Wide | Hight | A | B | Φ | Current | Package | |
| L(mm) | W(mm) | H(mm) | (mm) | (mm) | (mm2) | Amp | |||
| PET-3A | 93 | 15.7 | 12 | 6.0 | 8 | 4 | 3A | 10pcs electric terminal block | |
| PET-6A | 115 | 16 | 13 | 6.5 | 9.5 | 6 | 6A | ||
| PET-10A | 126 | 20 | 15.5 | 8.4 | 10.5 | 10 | 10A | ||
| PET-16A | 139 | 23 | 17.5 | 10.3 | 12 | 12 | 16A | ||
| PET-20A | 155 | 25 | 19.2 | 11.5 | 14 | 14 | 20A | ||
| PET-30A | 171 | 26 | 20.5 | 12.0 | 16 | 16 | 30A | ||
| PET-60A | 192 | 30 | 26 | 13.5 | 25 | 25 | 60A | ||
| PET-80A | 205 | 33 | 27 | 15.0 | 35 | 35 | 80A | ||
| PET-100A | 250 | 46 | 31 | 21.0 | 40 | 40 | 100A | ||
| PET-150A | 255 | 60 | 31 | 21.0 | 40 | 40 | 150A | ||
